In this project we will integrate SonarQube in Jenkins and automate security testing with a CI/CD pipeline.

Technologies:

• Jenkins (Local installation)
• SonarQube (Dockerized)

We will use a vulnerable web application named Vulnado for testing.

Jenkins Installation

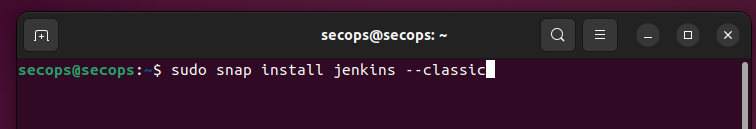

There are different ways to install Jenkins but I chose the easiest way. You can install Jenkins with package managers like apt/snap or follow the official installation guide. Also you can run Jenkins on Docker but this is not preferred.

Docker Installation

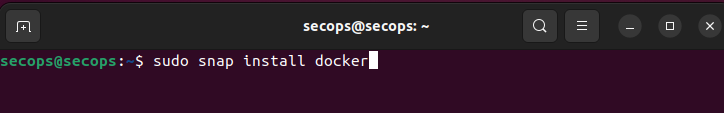

We are installing Docker to run SonarQube on Docker:

Configuring Jenkins

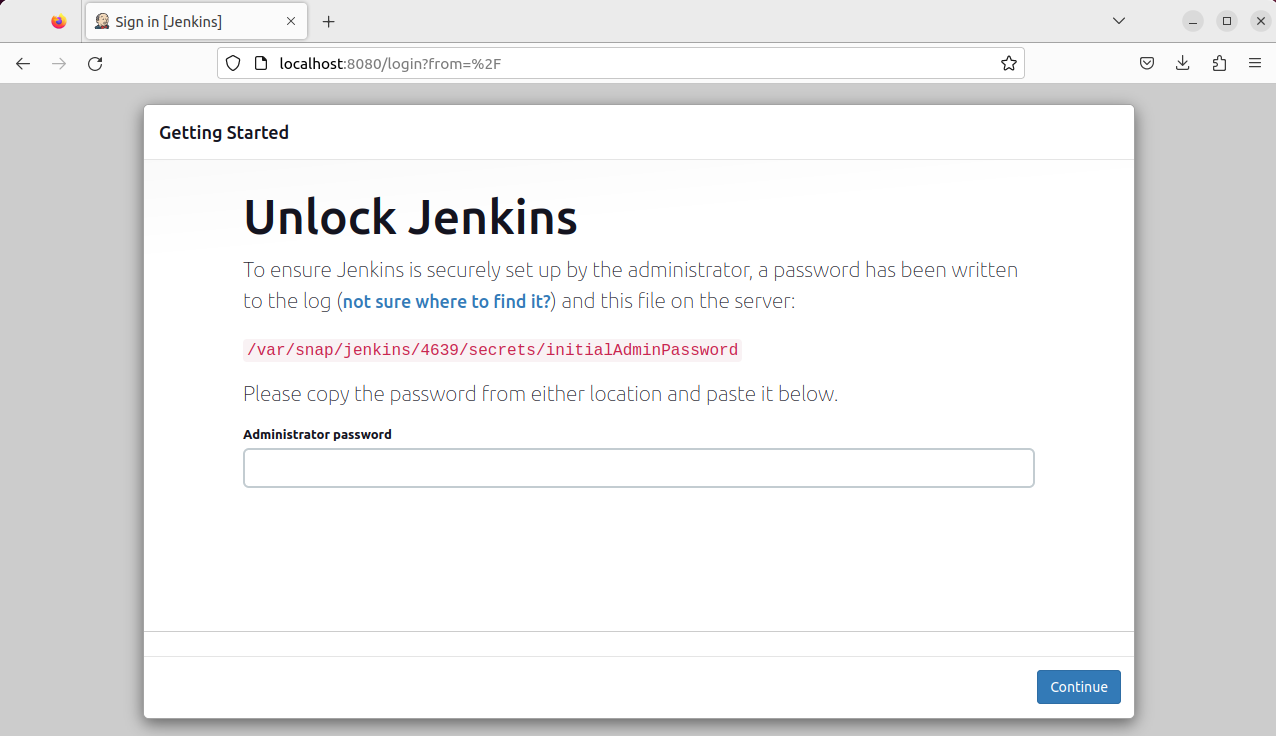

After installation you can reach Jenkins’s web interface from browser at localhost:8080 (default):

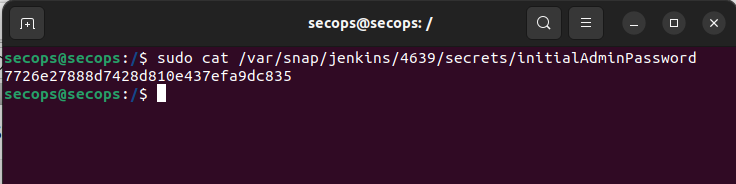

Getting the initial admin password:

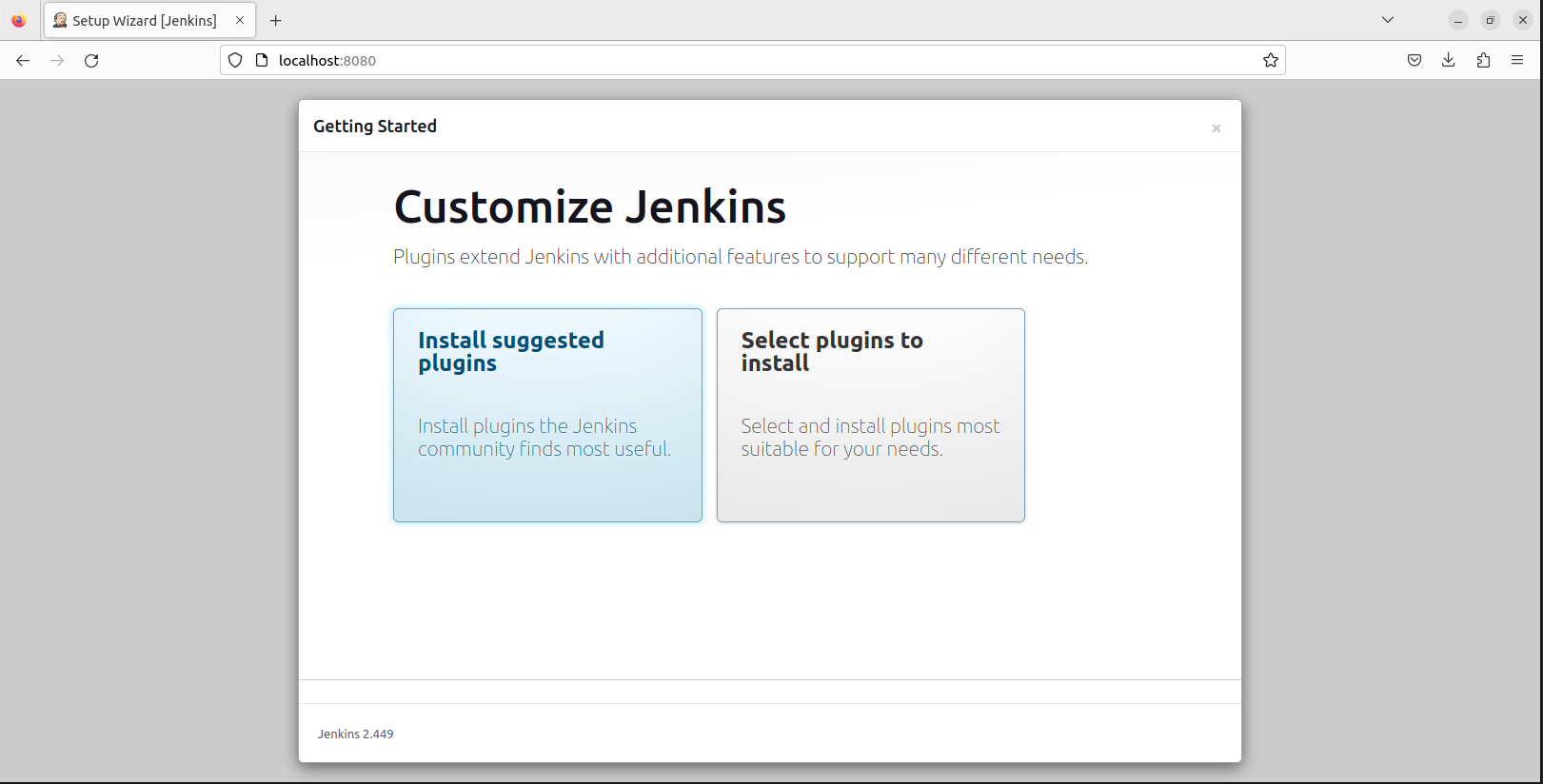

After you logged in, Jenkins asks which plugins to install. I chose suggested plugins:

Create the first admin user:

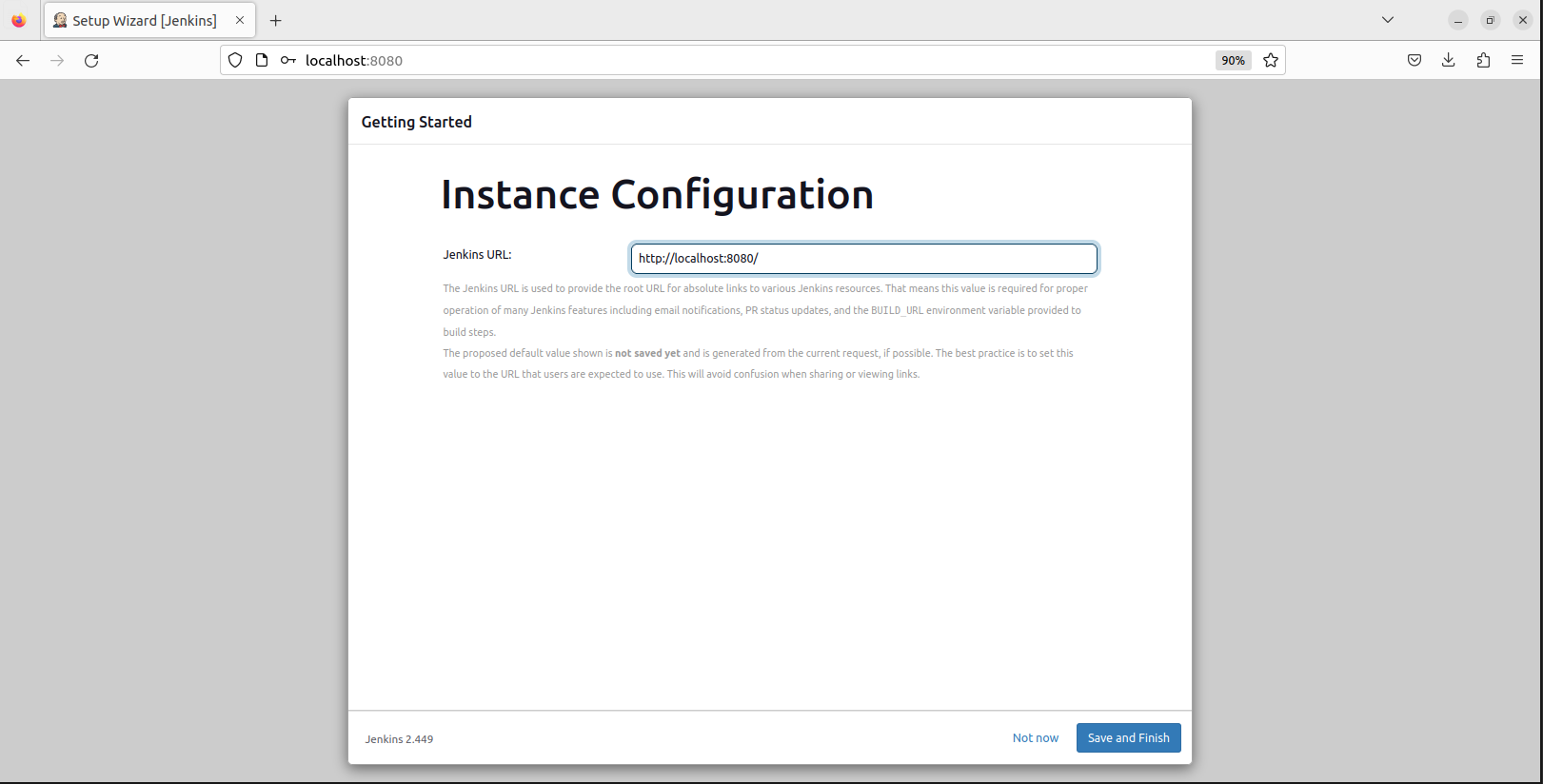

Configure the Jenkins URL:

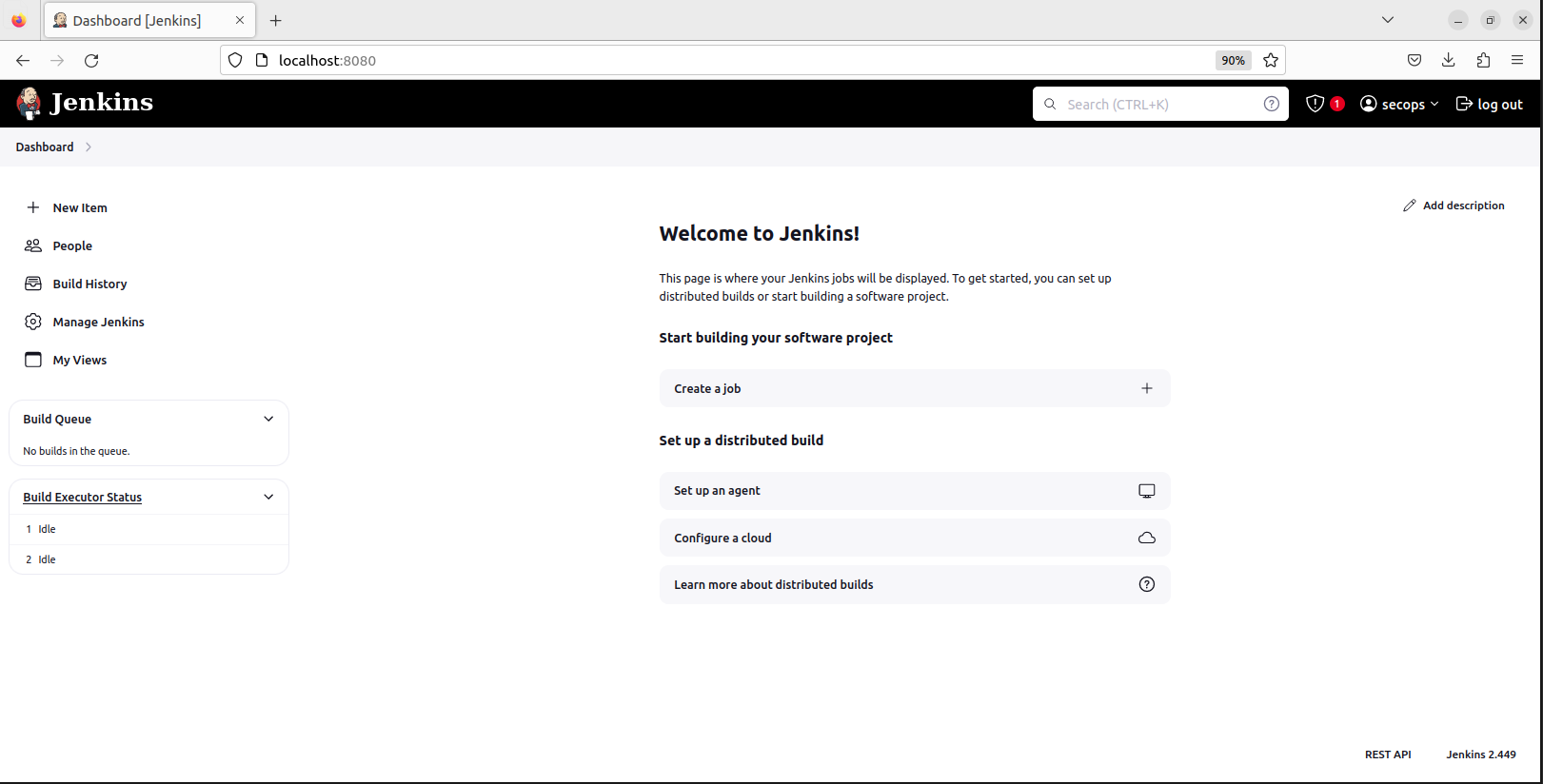

And here’s the Jenkins main page:

Creating the Pipeline

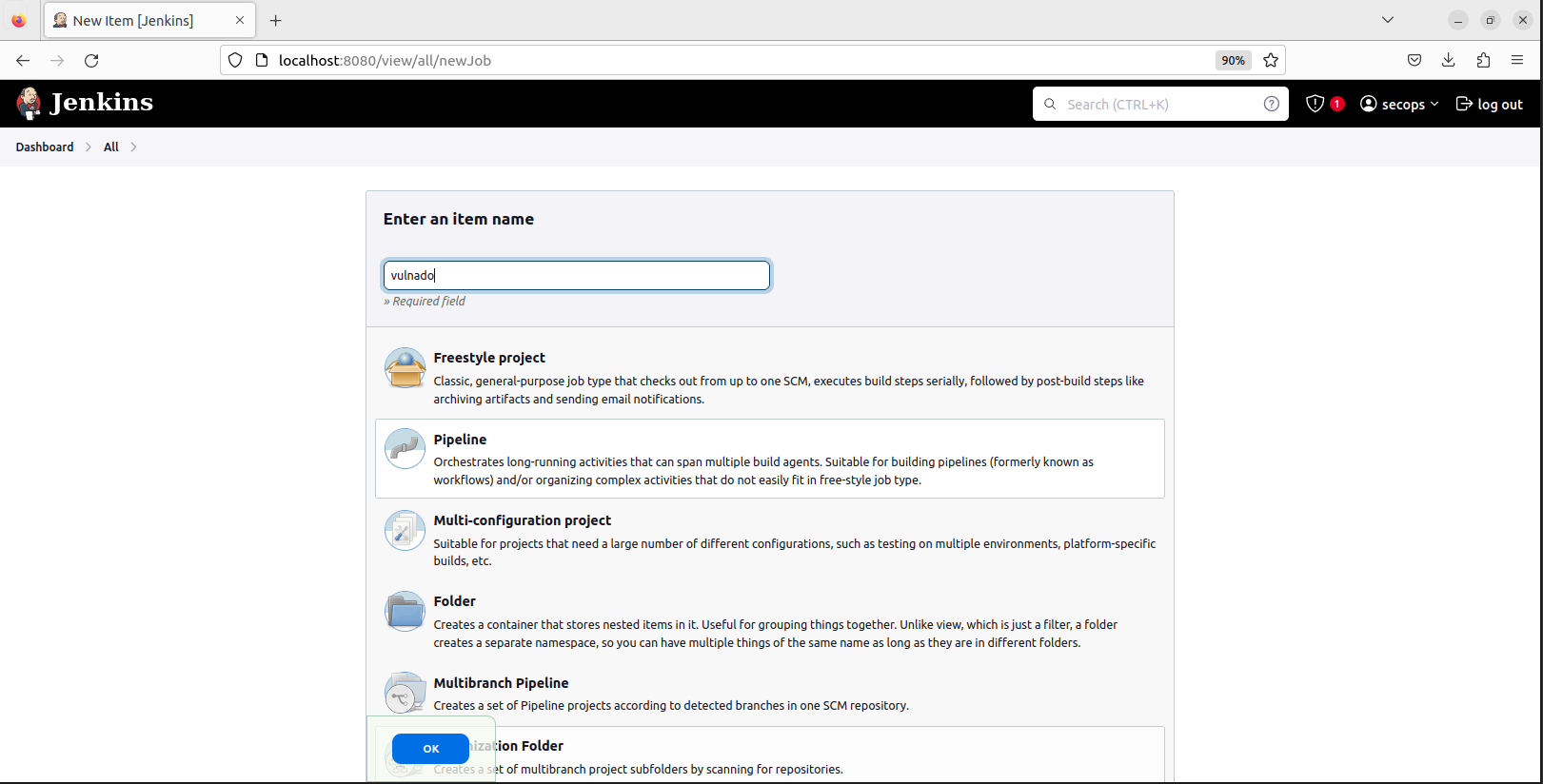

Press “New Item”, select Pipeline and give it a name:

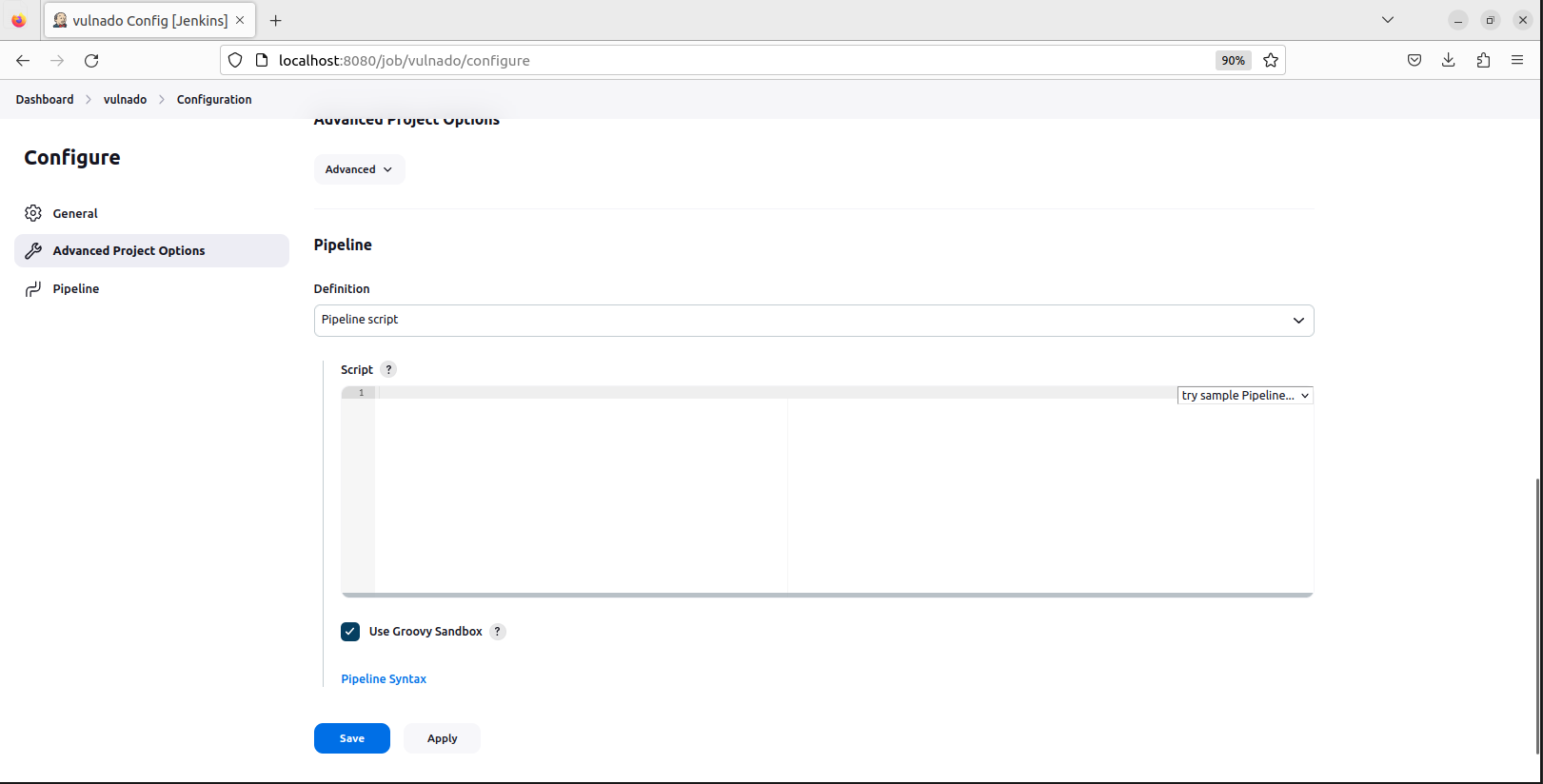

In the opened page scroll down to the Pipeline section. This is the editor we are going to use:

Jenkins has a syntax for pipeline scripting. It’s easy to understand and use.

Stage 1: Install the Project

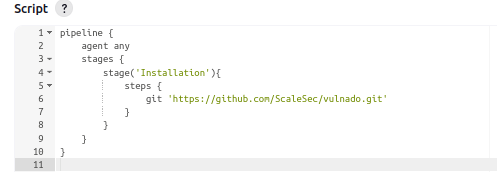

The first part of our pipeline - installing the project from Git:

Stage 2: Build the Project

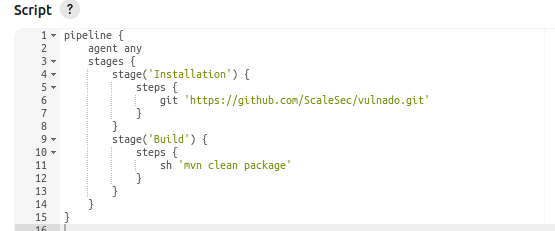

Second part - building the project (before build: sudo apt-get install maven -y):

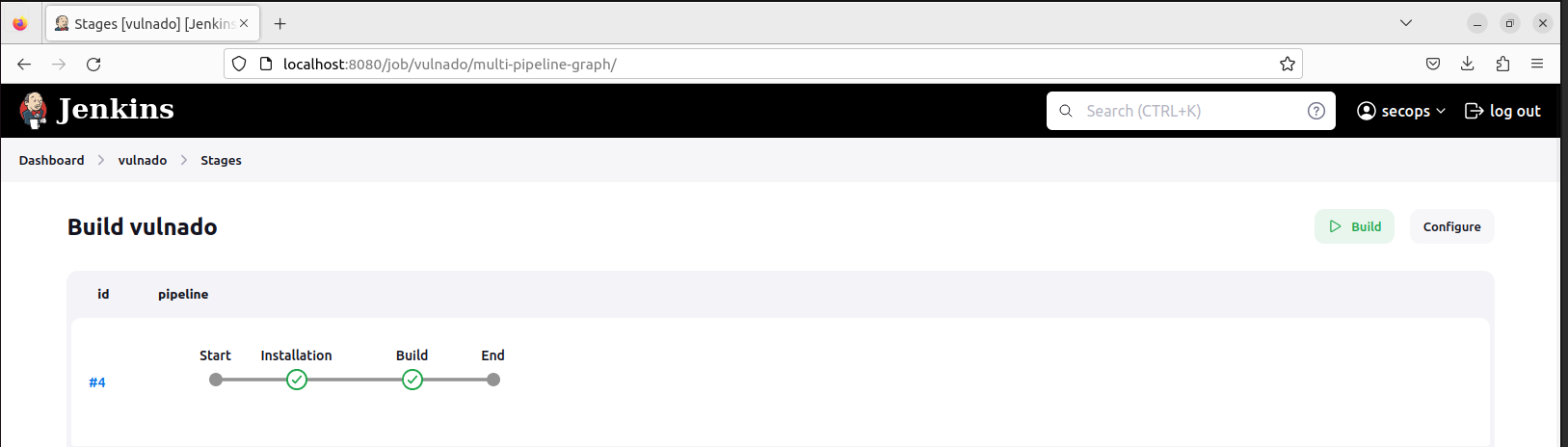

After building, your pipeline should look like this:

Setting Up SonarQube

We have installed and built the project in Jenkins. Now let’s start security testing!

Pull the SonarQube image:

Run SonarQube in a container:

Check if it’s working:

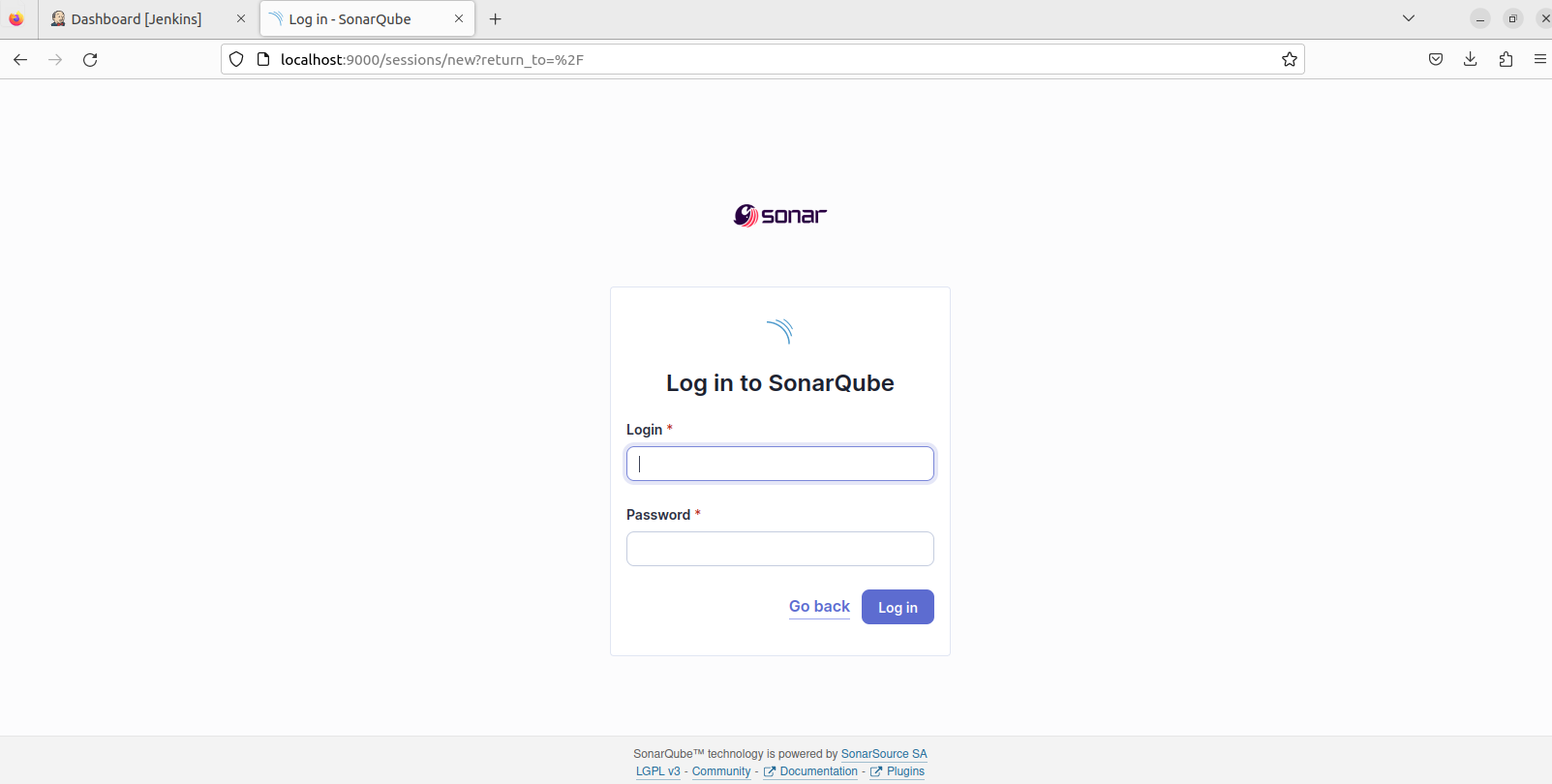

Access SonarQube at localhost:9000 with default credentials admin:admin:

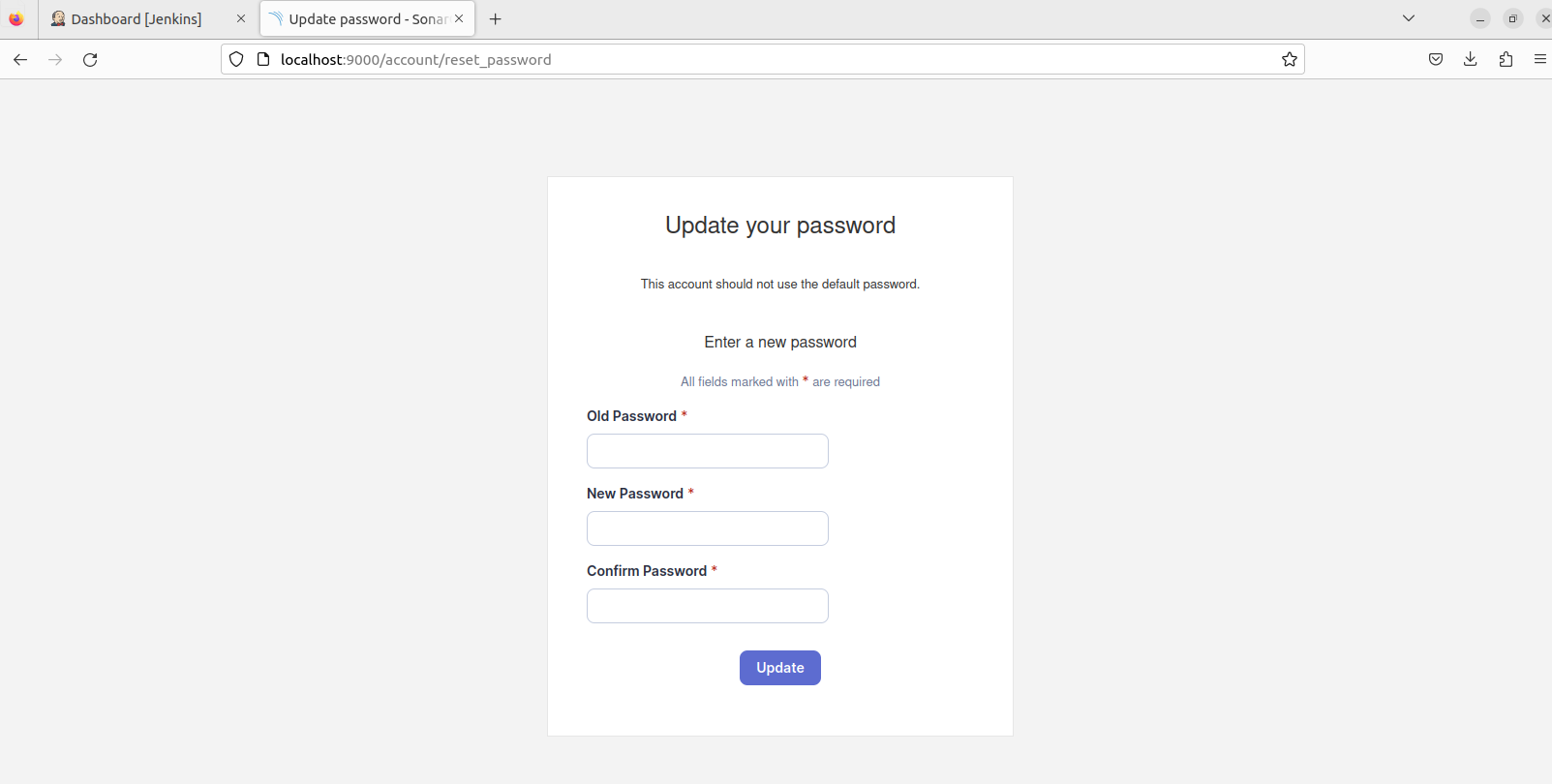

Reset your password:

SonarQube Project Setup

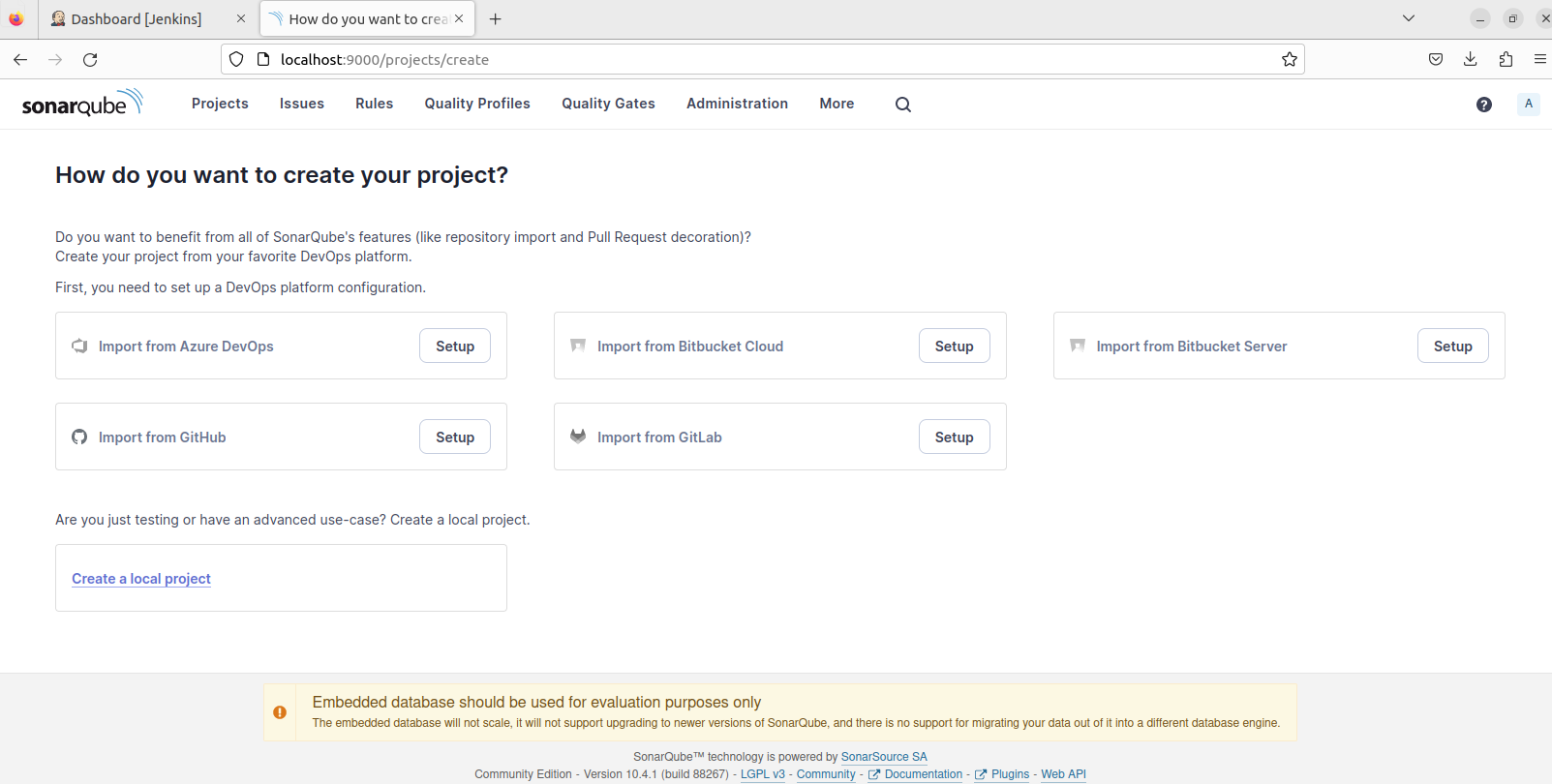

Choose “Create a local project”:

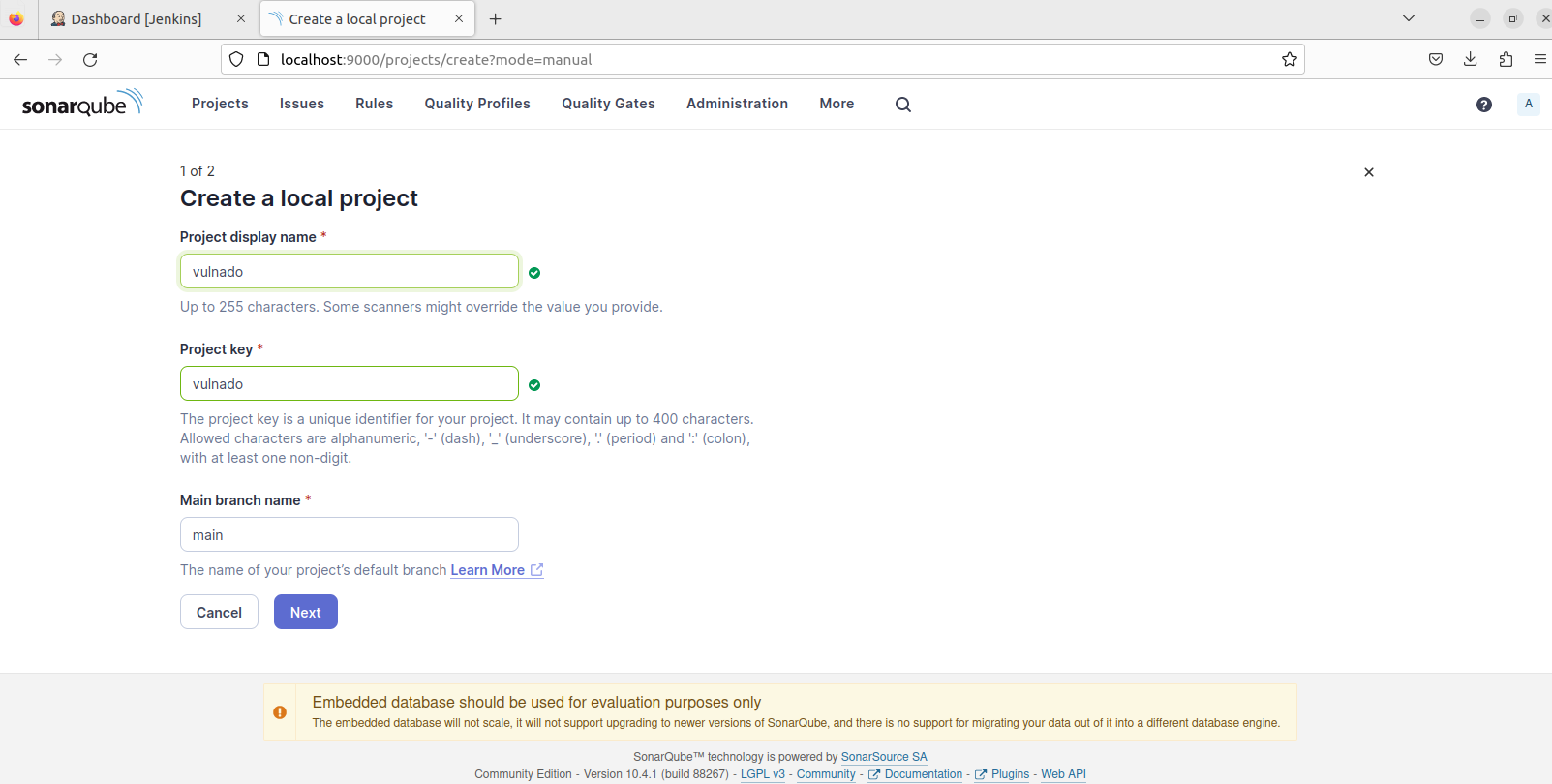

Fill the name and key:

Choose “Use global settings”:

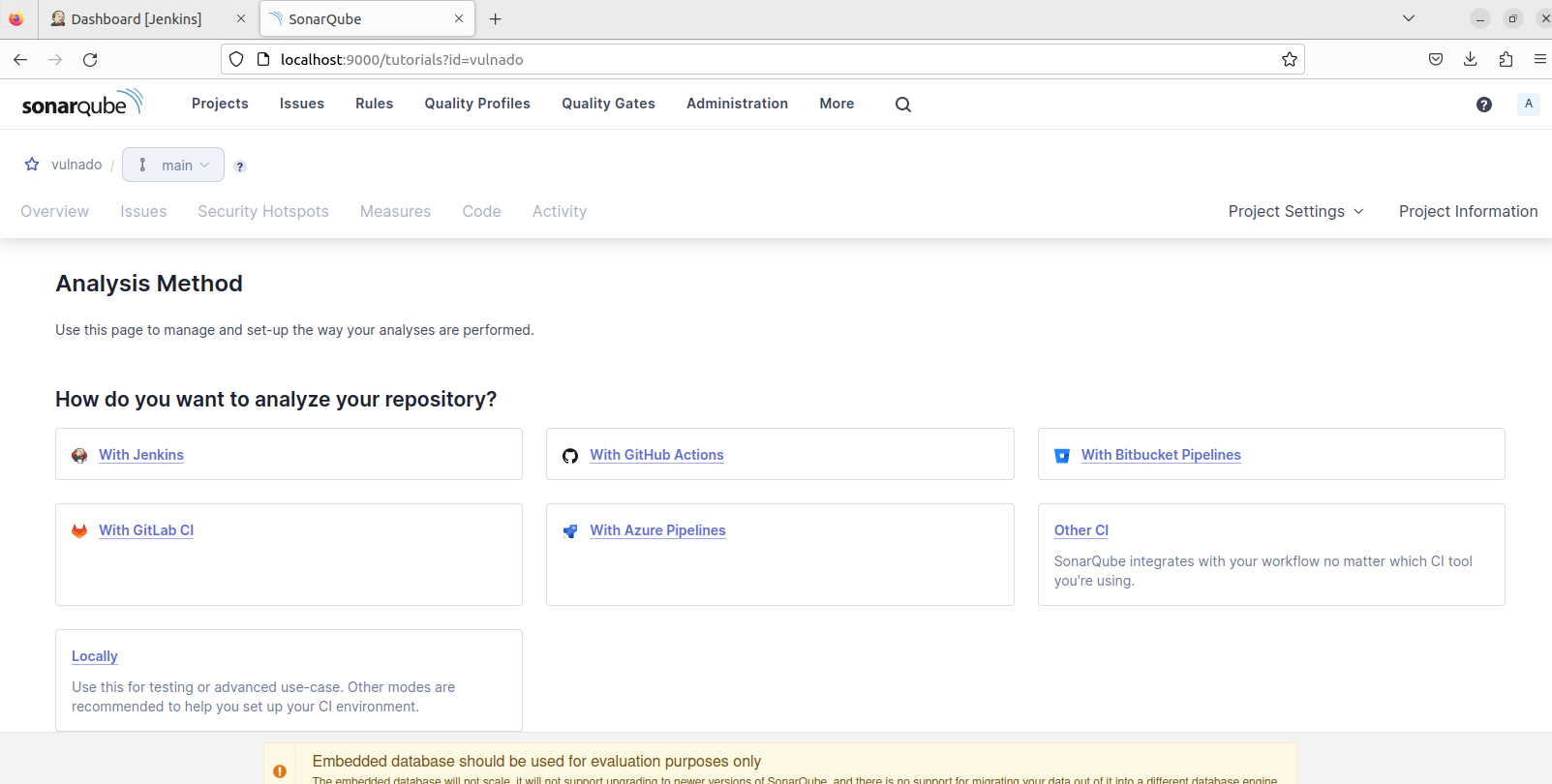

Choose Jenkins as analysis method:

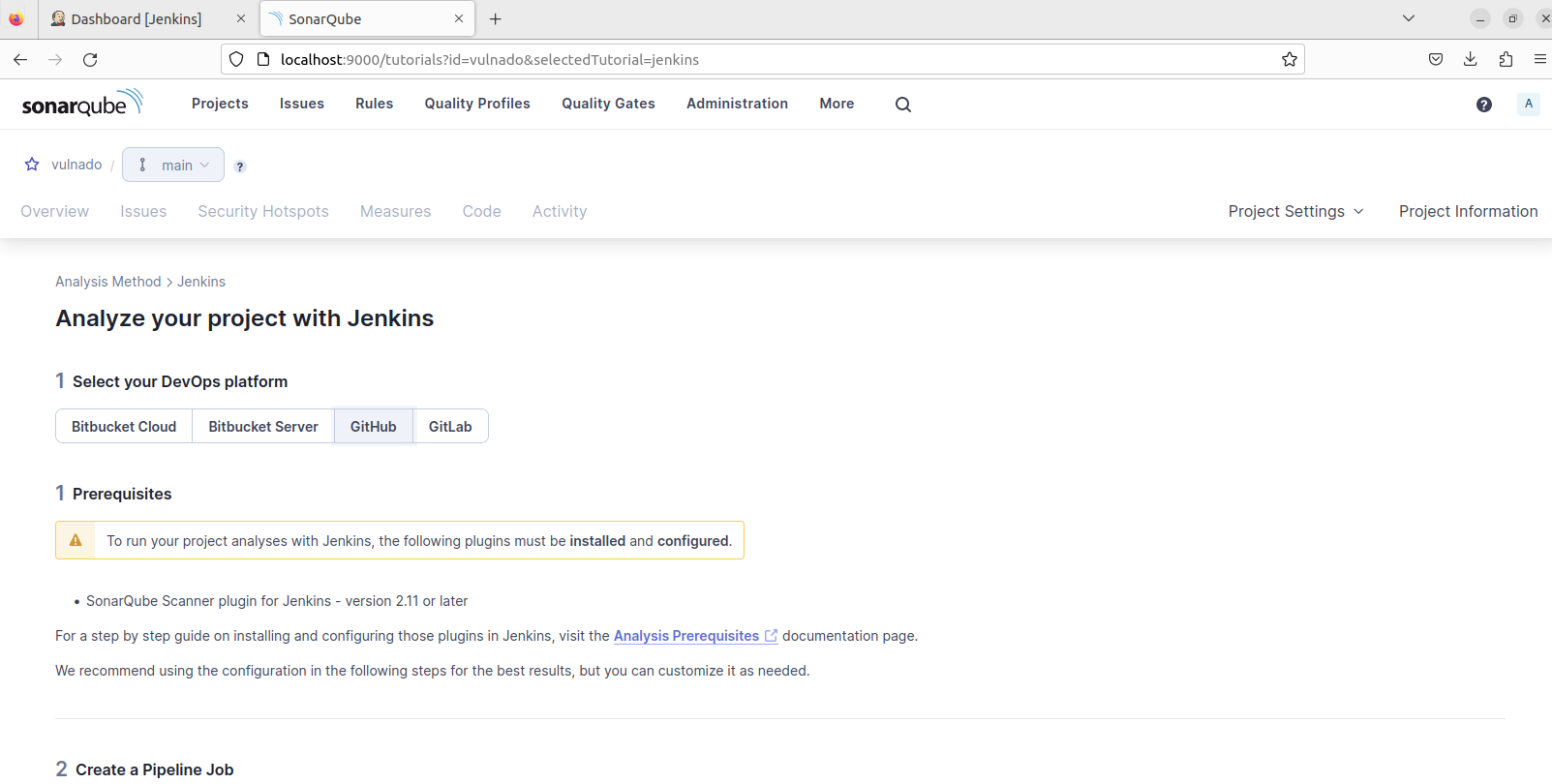

Choose GitHub:

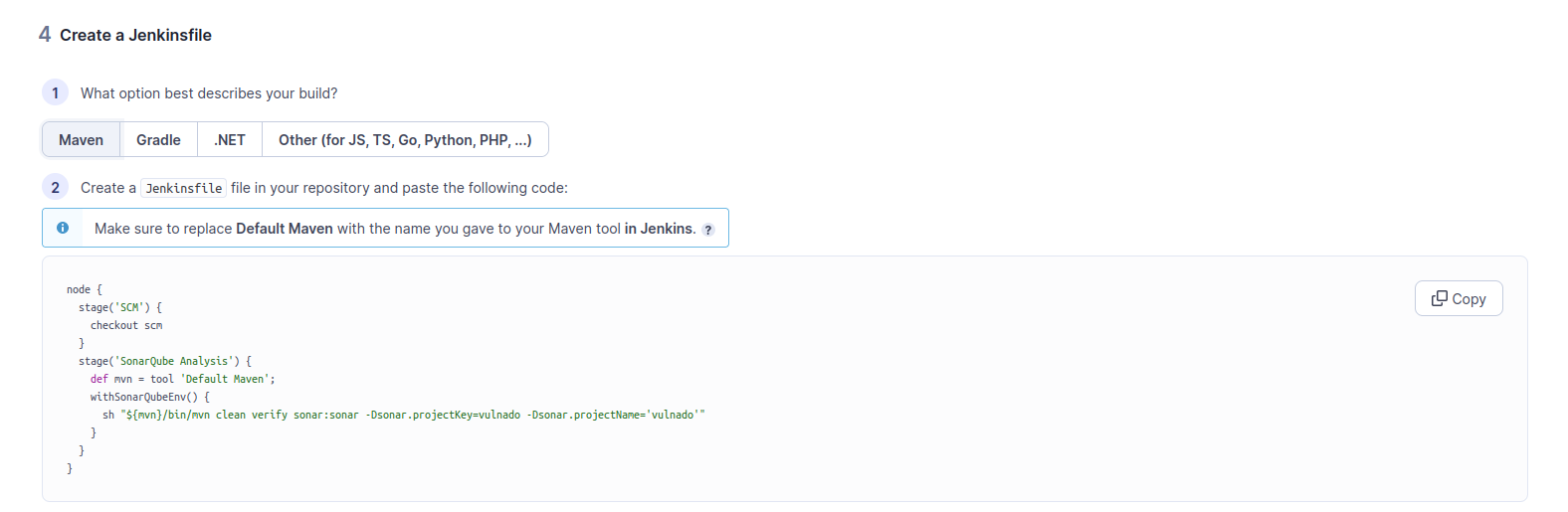

Choose Maven - SonarQube gives us a Jenkinsfile but this script needs modification:

Integrating SonarQube with Jenkins

In SonarQube, go to My Account > Security > Generate new token (Global Analysis Token):

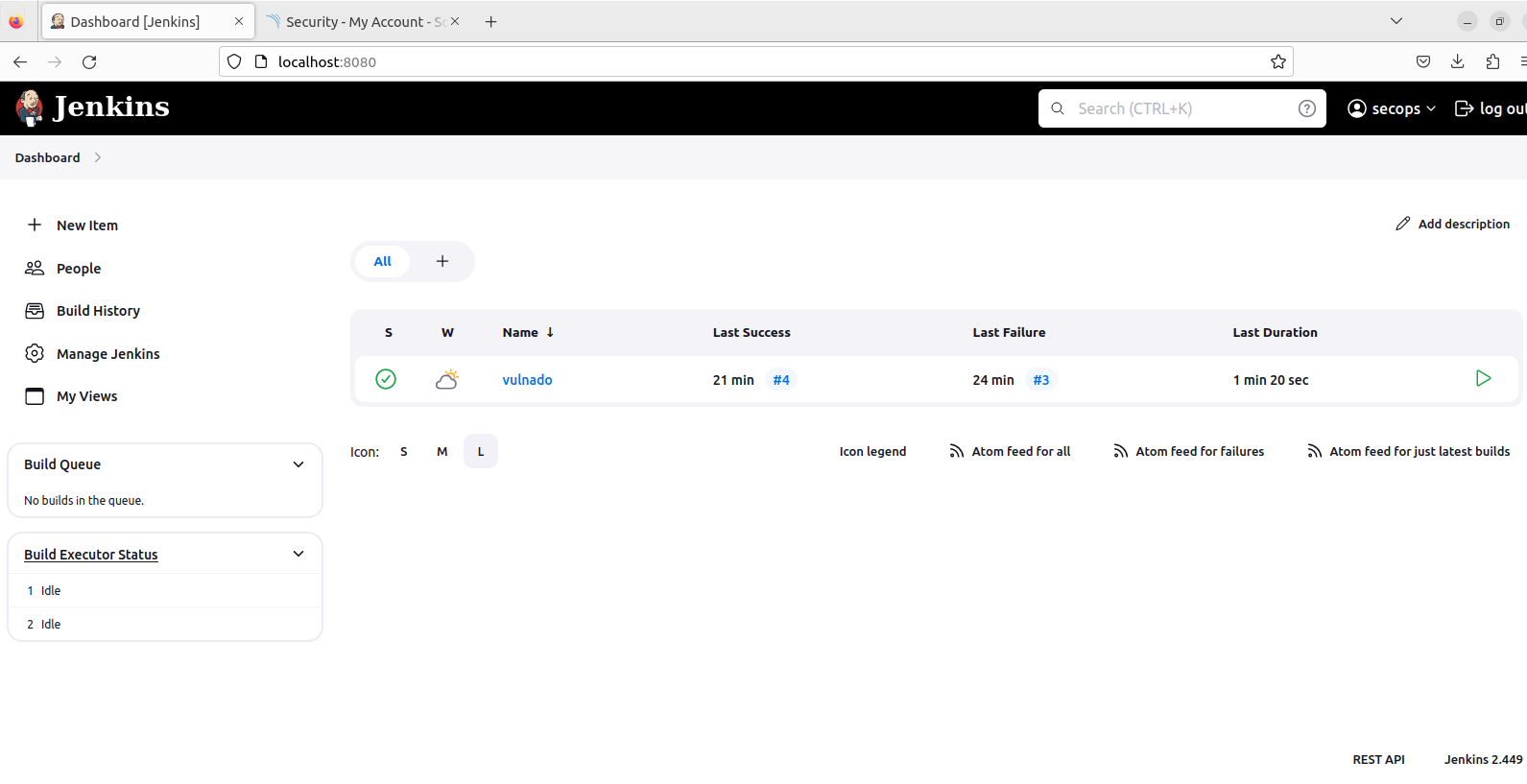

In Jenkins Dashboard > Manage Jenkins:

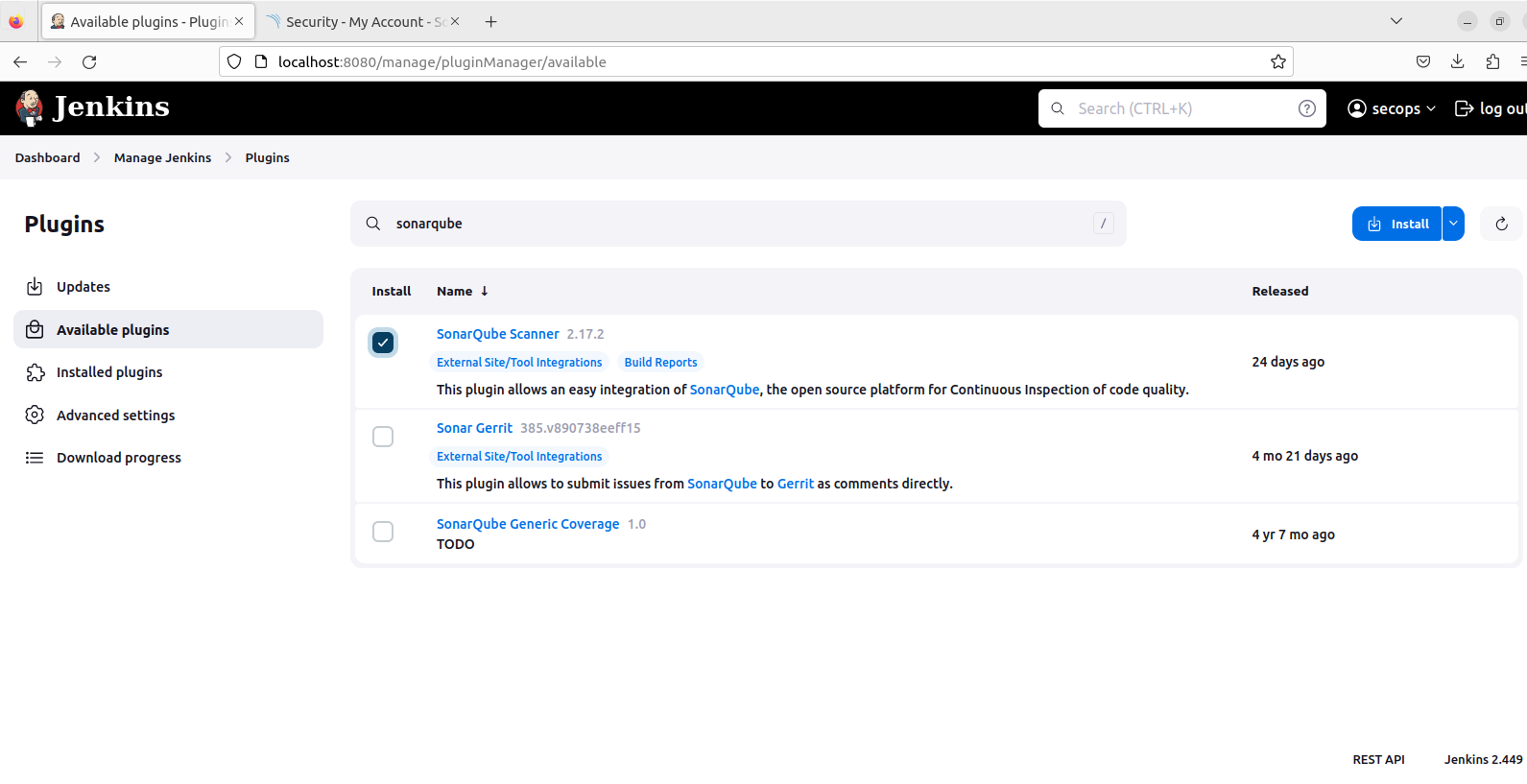

Install the SonarQube Scanner plugin:

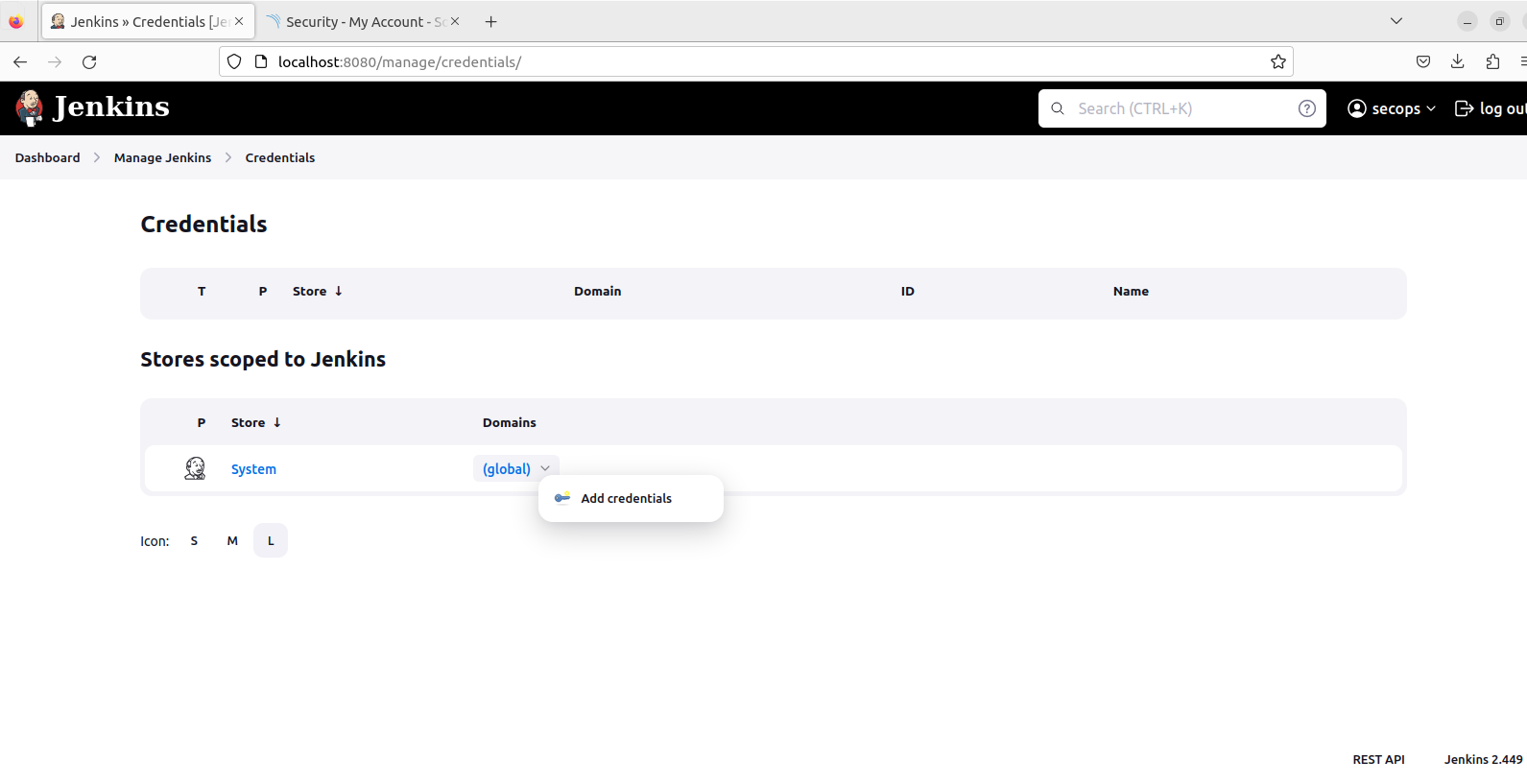

Go to Manage Jenkins > Credentials > Add credential:

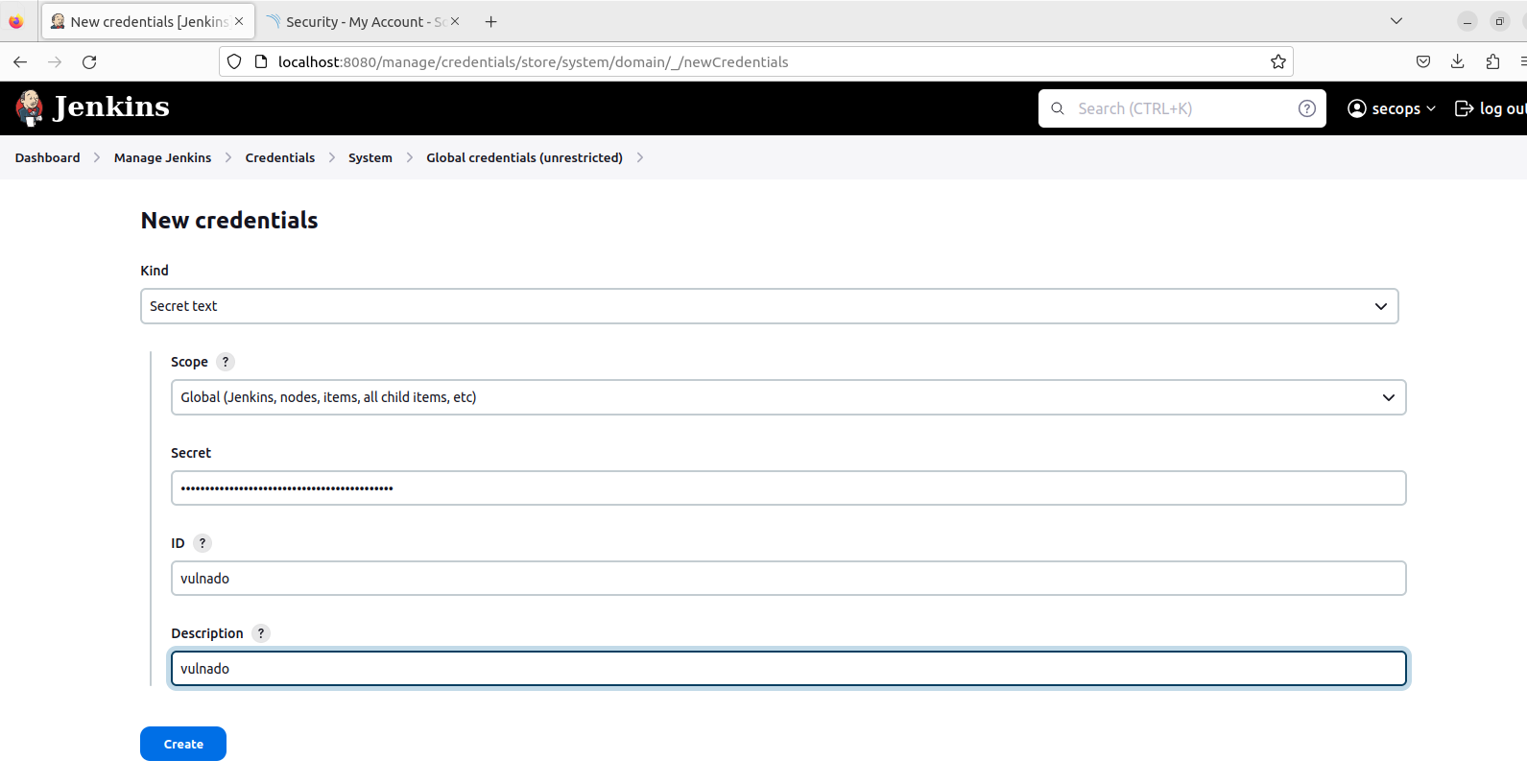

Select “Secret text” and paste the SonarQube Global Analysis Token:

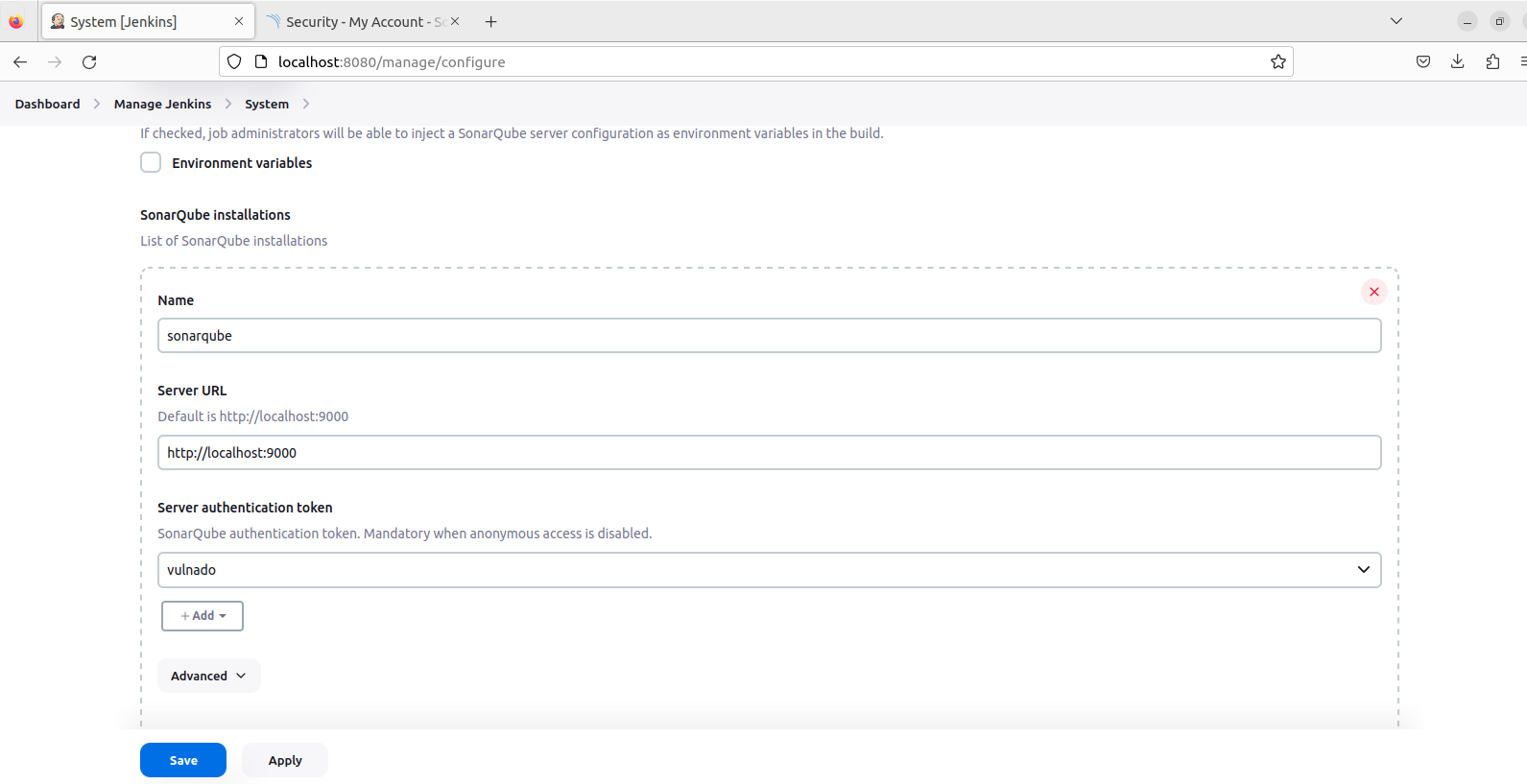

Manage Jenkins > System > SonarQube installations. Give a name, write the URL, and choose the token:

Final Pipeline

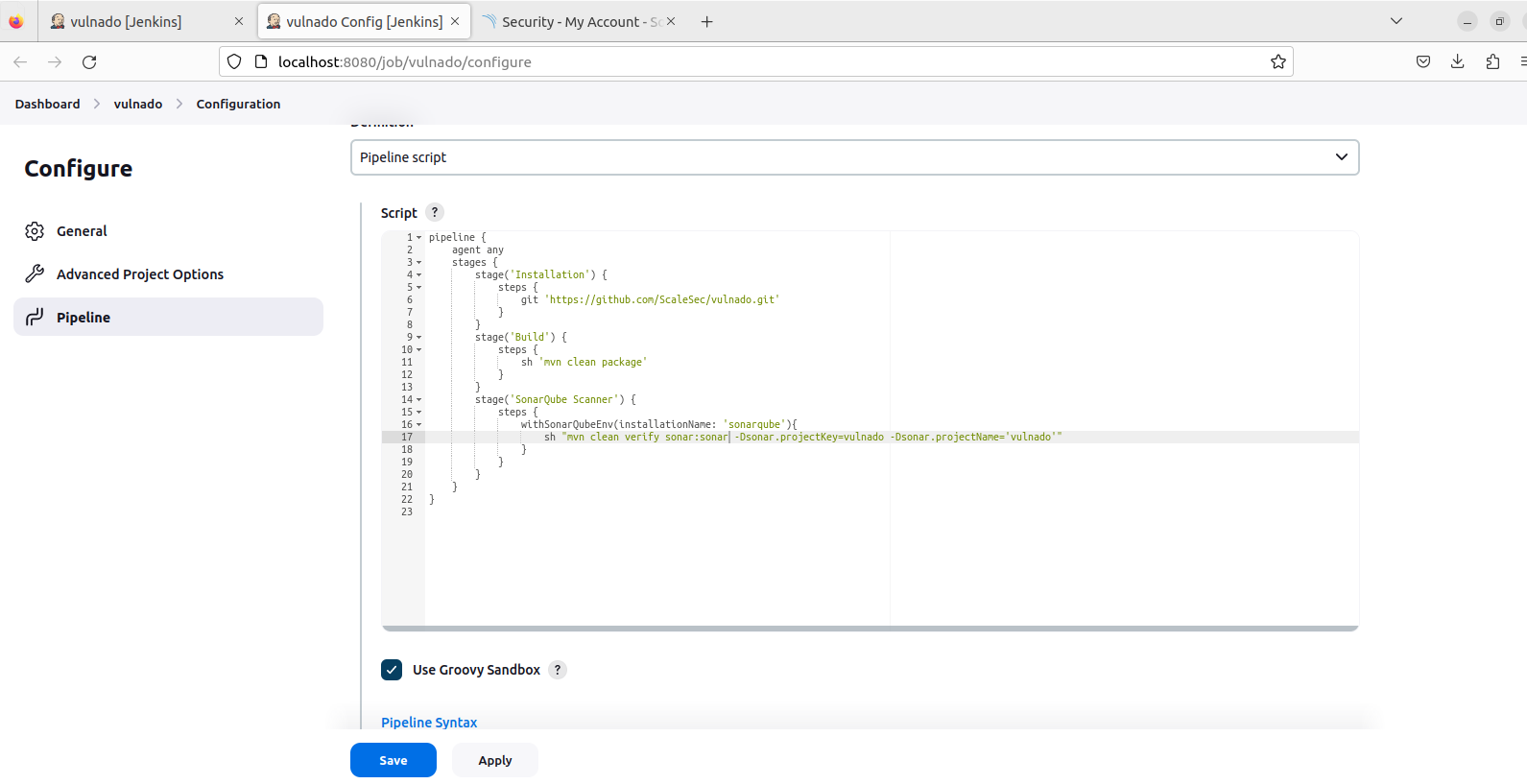

Your pipeline should look like this:

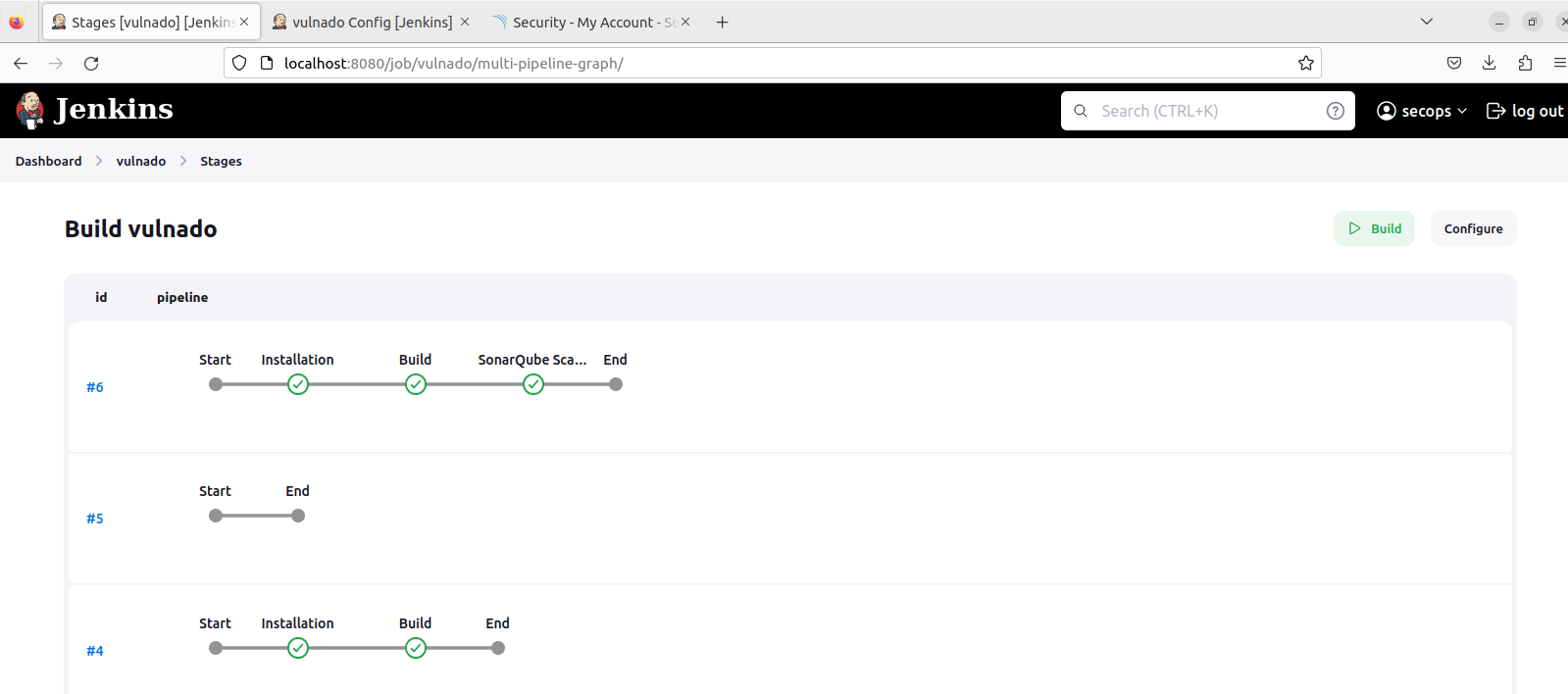

And this is how stages should look:

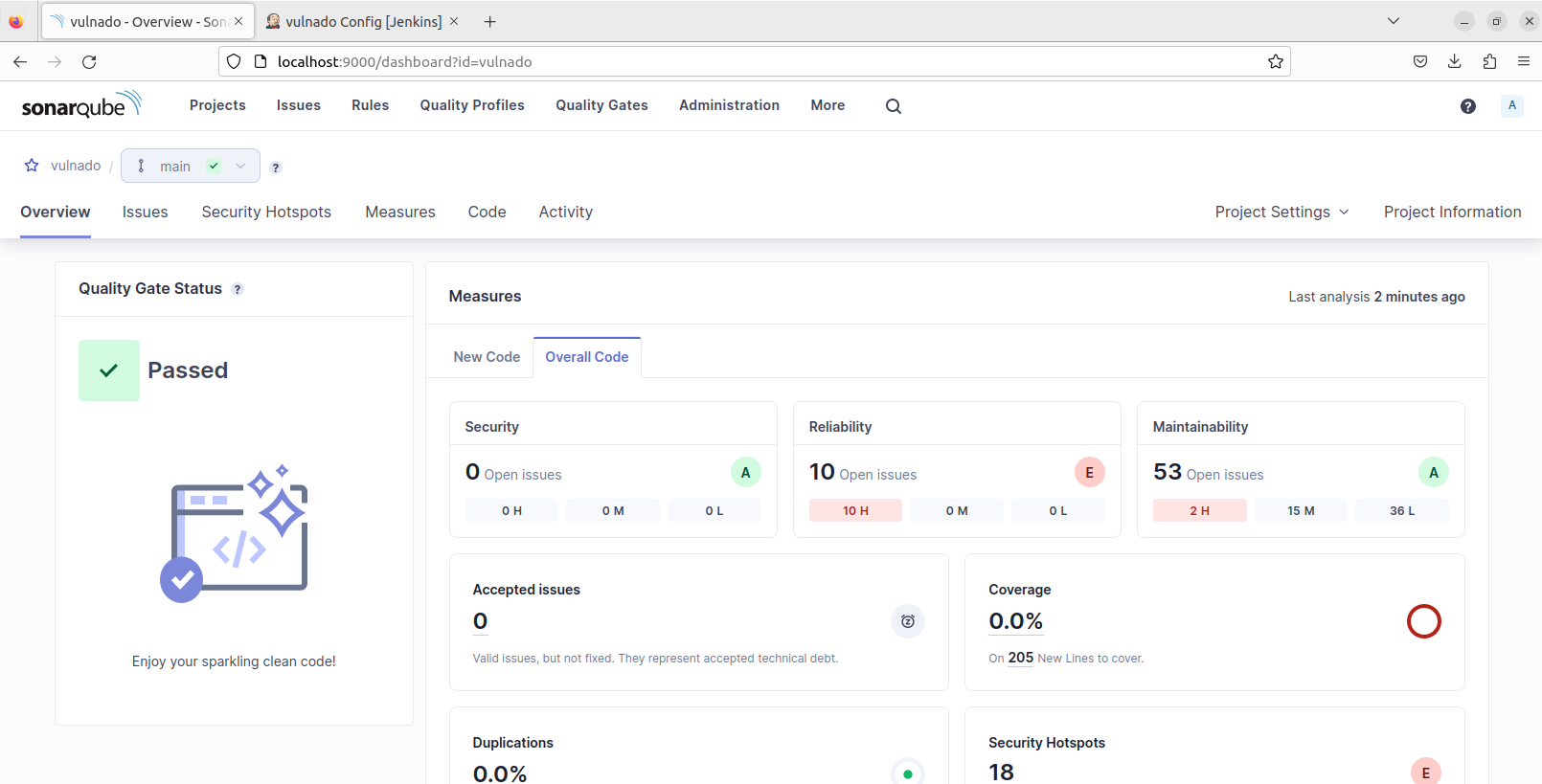

And this is the SonarQube dashboard with results:
